AWM FLEXIBLE CABLE 600V 105°C PVC RoHS
AWM FLEXIBLE CABLE 600V 105°C PVC RoHS

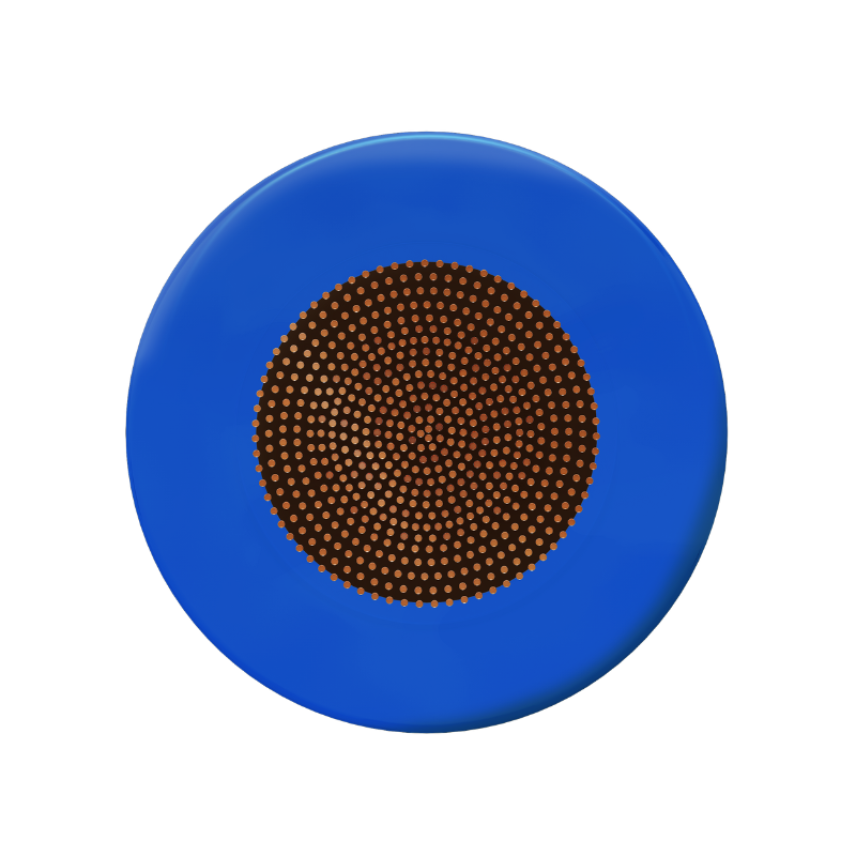

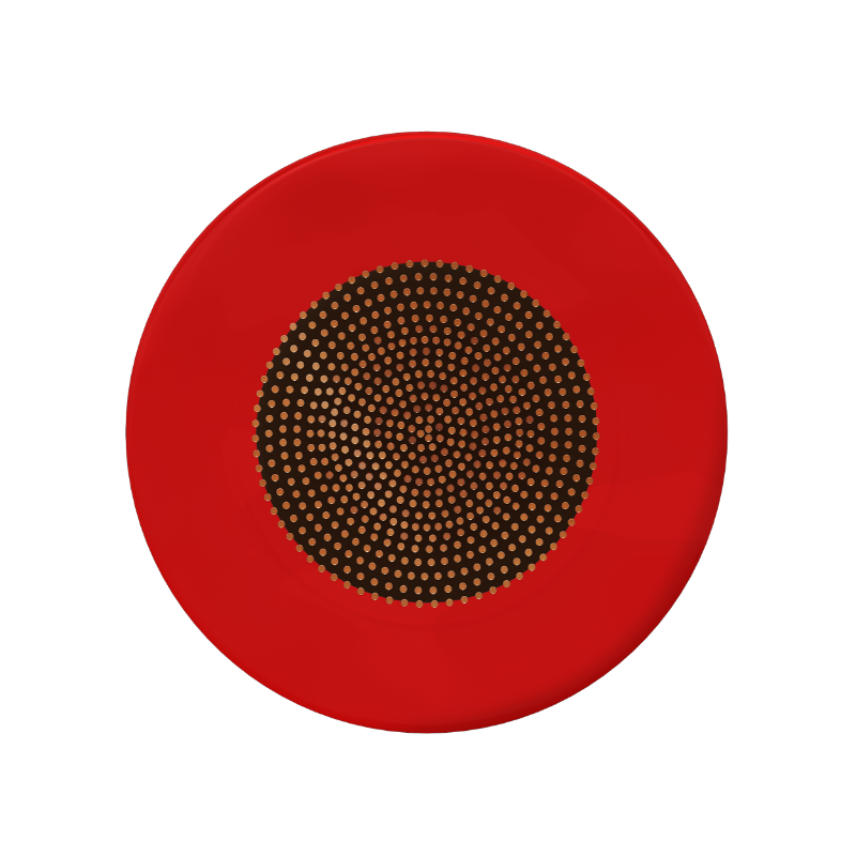

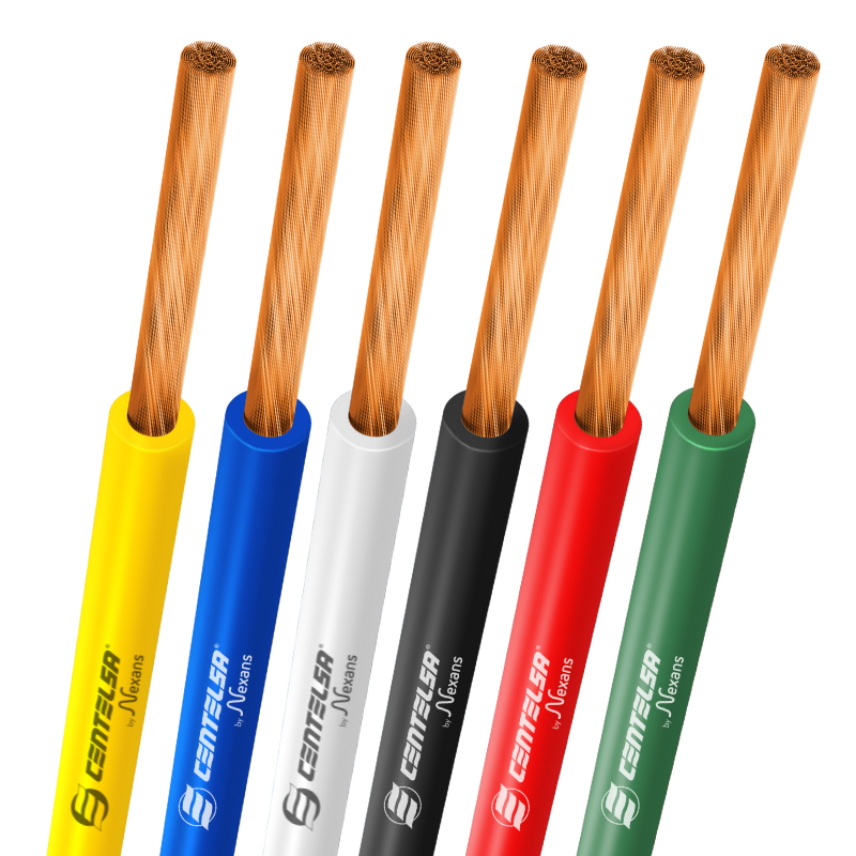

Flexible soft copper conductor, with polyvinyl chloride (PVC) insulation.
Read more10 AWG
Nexans ref.
- Approximate weight: 60.51 kg/km
- Conductor cross-section: 5.26 mm²
- Conductor diameter: 3.048 mm
- Nominal outer diameter: 4.65 mm
- Ampacity: 28.0 A
- Max. DC resistance of the conductor at 20°C: 3.41 Ohm/km
12 AWG
Nexans ref.
- Approximate weight: 41.06 kg/km
- Conductor cross-section: 3.31 mm²
- Conductor diameter: 2.429 mm
- Nominal outer diameter: 4.03 mm
- Ampacity: 23.0 A
- Max. DC resistance of the conductor at 20°C: 5.42 Ohm/km
14 AWG
Nexans ref.
- Approximate weight: 28.69 kg/km
- Conductor cross-section: 2.08 mm²
- Conductor diameter: 1.958 mm
- Nominal outer diameter: 3.56 mm
- Ampacity: 17.0 A
- Max. DC resistance of the conductor at 20°C: 8.61 Ohm/km
16 AWG
Nexans ref.
- Approximate weight: 20.01 kg/km
- Conductor cross-section: 1.31 mm²
- Conductor diameter: 1.534 mm
- Nominal outer diameter: 3.14 mm
- Ampacity: 8.0 A
- Max. DC resistance of the conductor at 20°C: 13.7 Ohm/km
18 AWG
Nexans ref.
- Approximate weight: 14.46 kg/km
- Conductor cross-section: 0.821 mm²
- Conductor diameter: 1.214 mm
- Nominal outer diameter: 2.81 mm
- Ampacity: 6.0 A
- Max. DC resistance of the conductor at 20°C: 21.9 Ohm/km
20 AWG
Nexans ref.
- Approximate weight: 11.59 kg/km
- Conductor cross-section: 0.517 mm²
- Conductor diameter: 1.016 mm
- Nominal outer diameter: 2.62 mm
- Ampacity: 4.7 A
- Max. DC resistance of the conductor at 20°C: 34.7 Ohm/km
Description
Description
Standards
-
NationalUL 758
Application
AWM FLEXIBLE cables are used to connect lighting fixtures, appliance or equipment wiring, and in applications with temperatures up to 105°C.
Construction
Conductor
Flexible soft copper.
Insulation
Polyvinyl chloride (PVC), flame retardant (FR), resistant to heat, abrasion and humidity; free of hazardous substances (RoHS).
Applicable Standards
UL 758
Certificate
RETIE N° 02703
Operating Temperature
105°C
Operating Voltage
600V
Marking
CENTELSA by NEXANS AWM FLEXIBLE Cu 105°C < Calibre AWG / Kcmil > 600 V PVC - RoHS - HECHO EN COLOMBIA.
Identification
Insulation in colors according to manufacturing standard.
Ampacity Conditions
- Ampacity to 105 °C conductor temperature, 30°C ambient temperature. According to NTC 2050, Table 402.5.
- 20 AWG: Ampacity value for reference only.
NOTE:
- The data reported here are nominal and are subject to tolerances according to standards and normal manufacturing practices.
- Other configurations not specified in this catalog may be available under special request and minimum manufacturing quantities.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible
Conductor material
Soft copper
Conductor shape
Bunched Wires
Insulation
PVC
Dimensional characteristics
Dimensional characteristics
Nominal insulation thickness
0.76 mm
Number of cores
1
Electrical characteristics
Electrical characteristics
Operating voltage
600 V
Mechanical characteristics
Mechanical characteristics
Abrasion resistance
Good
Usage characteristics
Usage characteristics
Max. conductor temperature in service
105 °C
RoHS compliant
Yes
